Band width : 14.2mm(9/16)

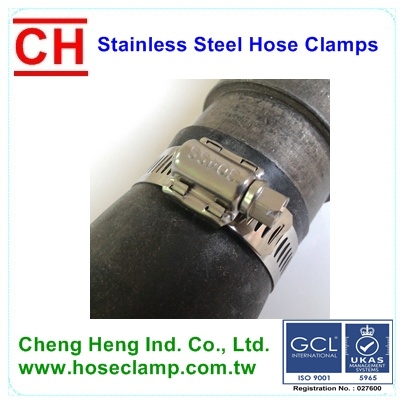

Cheng Heng's stainless steel hose clamp suitable for home, automotive,
industrial applications.
Four pieces construction: Full strength
of material to provide maximum anti-shear protection.
There are no spot welds to repture under stress or corrosion.
ALL 300 Series hose clamp : ... AISI 300 Series Stainless Steel Band, Saddle, Housing,
Screw
AZ Series hose clamp : ..... AISI 300 Stainless Steel Band,Saddle, Housing
with Zinc Carbon Steel Screw
 |

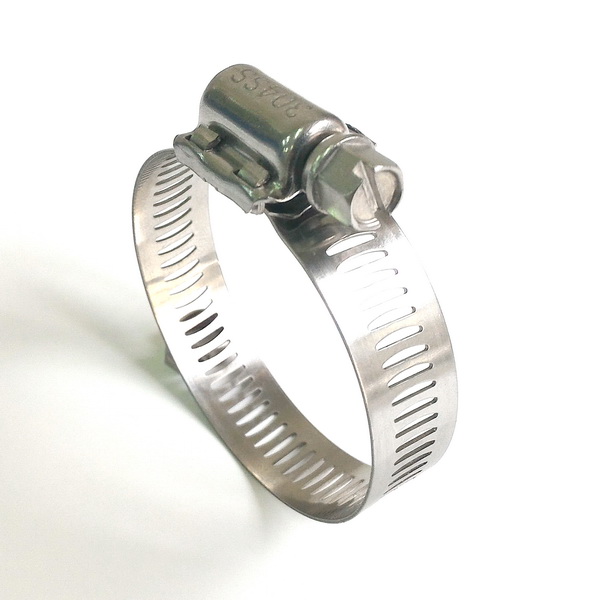

| HC4 |
| |
|
Four pieces Construction
|
|
| part
no |
CLAMPING
RANGE
Min-Max(inch) |
CLAMPING
RANGE
Min-Max(mm) |
| HC4-8 |
1/2-7/8 |
13-23 |
| HC4-10 |
9/16~1.1/16 |
14-27 |
| HC4-12 |
11/16~1.1/4 |
18-32 |
| HC4-16 |
13/16~1.1/2 |
21-38 |
| HC4-20 |
13/16~1.3/4 |
21-44 |
| HC4-24 |
1.1/16~2 |
27-51 |
| HC4-28 |
1.5/16~2.1/4 |
33-57 |
| HC4-32 |
1.9/16~2.1/2 |
40-63 |
| HC4-36 |
1.13/16~2.3/4 |
46-70 |
| HC4-40 |
2.1/16~3 |
52-76 |
| |
|
|
| |
|
|
|
|
| part
no |
CLAMPING
RANGE
Min-Max(inch) |
CLAMPING
RANGE
Min-Max(mm) |
| HC4-44 |
2.5/16~3.1/4 |
59-82 |
| HC4-48 |
2.9/16~3.1/2 |
65-89 |
| HC4-52 |
2.13/16~3.3/4 |
71-95 |
| HC4-56 |
3.1/16~4 |
78-101 |
| HC4-60 |
3.5/16-4.1/4 |
84-108 |
| HC4-64 |
3.9/16~4.1/2 |
90-114 |
| HC4-72 |
4.1/8~5 |
103-127 |
| HC4-80 |
4.5/8~5.1/2 |
116-140 |
| HC4-88 |
5.1/8~6 |
129-152 |
| HC4-96 |
5.5/8~6.1/2 |
141-165 |
| HC4-104 |
6.1/8~7 |
154-178 |
| |
|
|
|
|
|
